Features:
Kalpak PC based Formaldehyde Emission Test Chamber evaluates steady level of Formaldhyde Emmission from wood based panels. Volatile Organic Compounds (V.O.C.) and Formaldhyde for the samples drawn from buil;ding materials can be measured in this chamber.Testing of Particle board and plywood of 1Meter square surface Area can be carried out as per EN-717 and ISO /DIS 12460-1This Test Chamber is an Environment Chamber with
features like:

• Temperature Control and Measurement.
• Humidity Control and Measurement
• Air flow control and Measurement for Air Exchange
• Air Velocity Control inside the chamber
• Gas Sampling System
• Emission Analysis System

The test data is acquired and analyzed and tabulated by the PC

Features:
Endurance Test Machine tests the Fan and/or Blower. Endurance by rotating Fan /Blower at rated RPM with the help of motors. This fully automatic test system can be operated - continuous or cyclic mode and is divided in two sections named as Station 1 & Station 2 with a common control panel. Each station is capable of testing either two Fans or Blowers. A separate electric motor drive with two timing Pulley sets & Timing belts provide identical speed drive to both components of the individual Station. In effect two fans &/or two Blowers or Four Fans / Blowers cabn be tested at a time. The system also has provision to run only one station at a time.

Features:

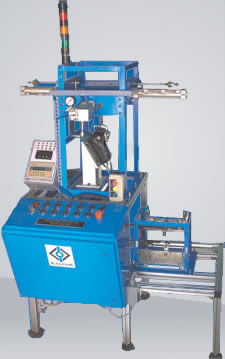

The Test Rig Test Rig conducts endurance testing of Gear Shifter Assembly. Cables are routed such that Cable ends at the Transmission side are coupled to spring assemblies to exert requisite Force on individual cable.The Gear Shifter knob shall be attached to the top moving platen of the table and manipulated using a X-Y table. The exact distance traveled is controlled by Stepper motors coupled to the Ball Screw mechanism of the table. A dedicated PLC controls the test Sequence in pre defined steps. The testing can be continued for programmed number of cycles.

Features:
Jounce and squirm test system tests two Automobile seats simultaneously. Pneumatic Cylinder used as Linear actuator exerts load on the seat for jounce testing shall be pneumatic cylinder. The travel of the piston is controlled through the reed switches. while Squirm test is effected by Rotary Hydraulic Actuator.Force and Angle measurement is done on Digital Displays. . A common PLC with HMI shall control the test sequence & parameter programming.

Features:
We offer to our customers Complete turnkey Leak Test Solutions using our engineering expertise in application of Leak detection Techniques. We provide Electrical and Electronic Design, PLC programming, Customized SPC and Data Analysis Software development, Design and development of Customized Manual/Pneumatic or hydraulic Clamping Test fixtures to support our turn key solutions.
